Baja Designs

Squadron Sport Black LED Auxiliary Light Pod Pair

Squadron Sport Black LED Auxiliary Light Pod Pair

SKU:557801

Regular price $249.95 USD
Regular price Sale price $249.95 USD
Sale Sold out
Shipping calculated at checkout.

Upgrade your light package with the Squadron Sport LED light pair from Baja Designs. Don’t let the compact size of these 3” light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV and any other vehicle that needs lights. While compact in size the Squadron Sport is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next generation LEDs pushing out 3,162 lumens at 30 watts.

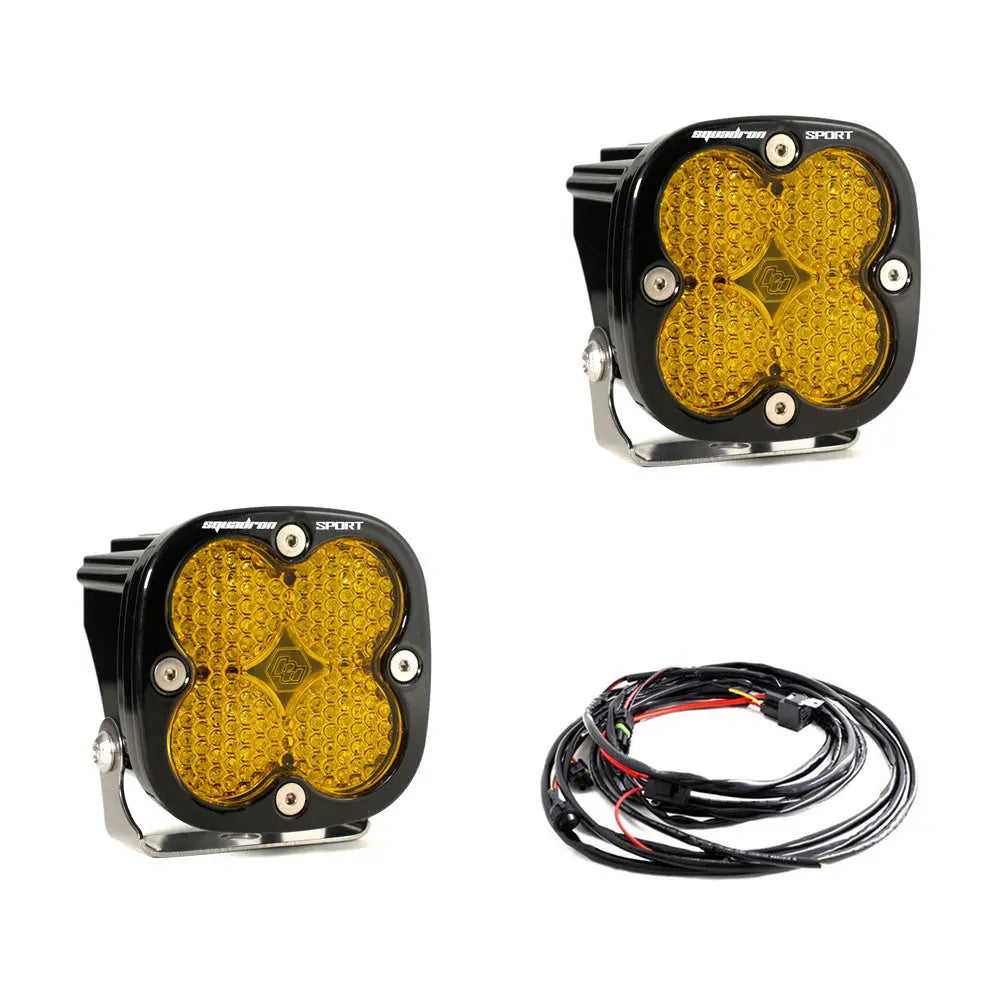

One Pair Squadron Sport Pod Lights, Wiring Harness Included

Baja Designs 557801 Installation Sheet

Brightness

 Lumens-Each Amperage Rating-Each
3,162 2.0A

Dimensions

Depth in. Height in. Length in. Weight lbs.
2.77
3.07 3.07 .75

Detailed Specs

Average Rated Life (hr.)

49,930

Available Beam Patterns

Spot, Driving/Combo, Wide Cornering, Work Scene

Bezel Material

Hard Anodized and Powder Coated Cast Aluminum

Housing Color

Black

Housing Material

Aircraft Grade Aluminum with Mil-Spec Hard Anodize

Available Lens Colors

Clear, Amber

Lighting Modes

Beam

Lens Material

Hard Coated Polycarbonate

Lighting Type

LED

Hardware Included

Yes

Hardware Material

Stainless Steel

Overvoltage Protection

Built-In

Wiring Harness Included

Yes



Durability

Exceeds MIL-STD810G (Mil-Spec Testing)

Water Resistance

IK10 Compliant (Mechanical Impact Testing)

Impact Resistance

IP69K (Waterproof up to 9ft & Pressure Washable)



Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color


VEHICLE LIGHTING ZONES
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
Learn more about each zone's placement, power, and pattern.

Learn more

View full details
  • Wide Cornering

    The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.

  • Driving Combo

    Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

  • Spot

    A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

  • Work/Scene

    Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
