Baja Designs

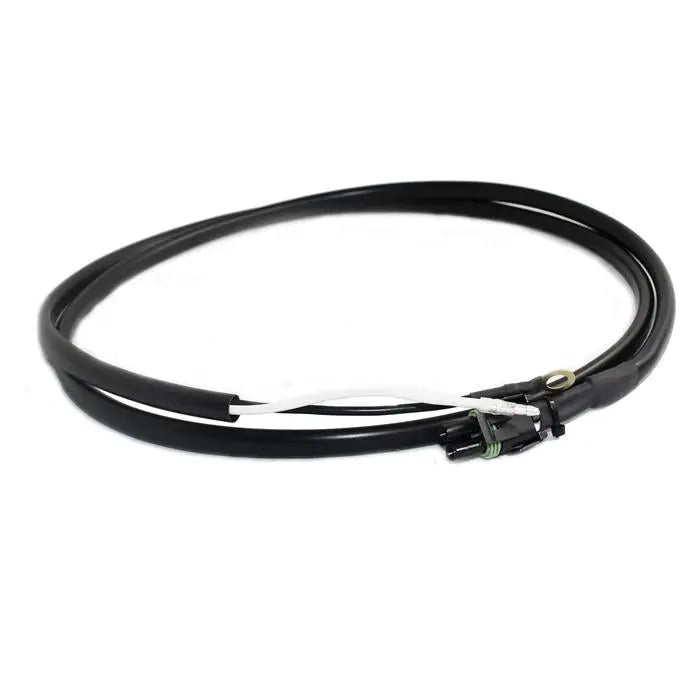

Squadron/S2/S1 Upfitter Wiring Harness

Squadron/S2/S1 Upfitter Wiring Harness

640093

$13.95 USD
$13.95 USD
Sale Sold out
Shipping calculated at checkout.

The Baja Designs Upfitter Wiring Harness has been designed specifically for vehicles with factory up-fitter / uplifter switches, including Dodge, Ford, and Jeep. This harness simplifies installation of all of our Baja Designs lights. It can also be used to integrate switch panels such as Switch Pros or sPOD units. If you plan on using two Squadron, S2, or S1 lights on a single harness, you'll also need our 2-pin splitter.

    Detailed Specs

    Application Squadron/S2/S1
    Description 1 Upfitter Harness
    Mounting Hardware Included No
    Product Type Squadron/S2/S1 Upfitter Wiring Harness
    Switch Included No
    Terminal Connector 1 Two-Pin Connection
    Terminal Type Splice Connectors
    Universal or Specific Universal
    Wiring Harness Description 1 Upfitter Harness
    Wiring Harness Included Yes

    VEHICLE LIGHTING ZONES
    The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
    Learn more about each zone's placement, power, and pattern.

    Learn more

    View full details

    Lens Patterns:

    • Wide Cornering

      The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.

    • Driving Combo

      Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

    • Spot

      A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

    • Work/Scene

      Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
