Squadron-R Sport Black LED Auxiliary Light Pod Pair
Squadron-R Sport Black LED Auxiliary Light Pod Pair
SKU:587801
Two is better than one, right? We think so, which is why we're offering a pair of Squadron-R Sport LED auxiliary lights with wiring harness for $229.95. Similar to the Squadron Sport, the Squadron-R Sport off-road lights produce 3,150 lumens of pure power to light up the trail on your nighttime off-roading excursions! The Squadron-R Sport has been designed for customers looking for LED performance with more traditional styling. The Squadron-R Sport has also been optimized for aftermarket bumpers featuring a 4 inch round hole.

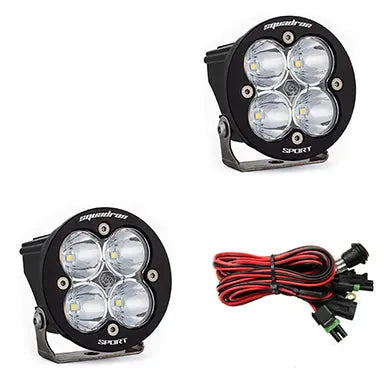

One Pair Squadron-R Sport Pod Lights, Wiring Harness Included
Baja Designs 587801 Installation Sheet
Brightness
Lumens-Each | Amperage Rating-Each |
3,150 | 2.0A |
Dimensions
Depth in. | Height in. | Length in. | Weight lbs. |
2.77 |
3.5 | 3.5 | .75 |
Detailed Specs
Average Rated Life (hr.) |
49,930 |
Available Beam Patterns |
Spot, Driving/Combo, Wide Cornering, Work Scene |
Bezel Material |
Hard Anodized and Powder Coated Cast Aluminum |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Available Lens Colors |
Clear, Amber |
Lighting Modes |
Beam |
Lens Material |
Hard Coated Polycarbonate |
Lighting Type |
LED |
Hardware Included |
Yes |
Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Wiring Harness Included |
Yes |
Durability |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Water Resistance |
IK10 Compliant (Mechanical Impact Testing) |
Impact Resistance |
IP69K (Waterproof up to 9ft & Pressure Washable) |
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Share
Lens Patterns:
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
