Squadron Pro Black LED Auxiliary Light Pod Pair
Squadron Pro Black LED Auxiliary Light Pod Pair
SKU:497801
Light up the night with Squadron Pro LED light pair from Baja Designs. Don’t let the compact size of these 3” light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV and any other vehicle that needs lights. While compact in size the Squadron Pro is equipped with a sleek black gloss aluminum housing that outshines the competition through both appearance and performance using next generation LEDs pushing out 4,095 lumens.
One Pair Squadron Pro Pod Lights, Wiring Harness Included
Baja Designs 497801 Installation Sheet
Brightness
Lumens-Each | Amperage Rating-Each |
4,095 |
3.0A |

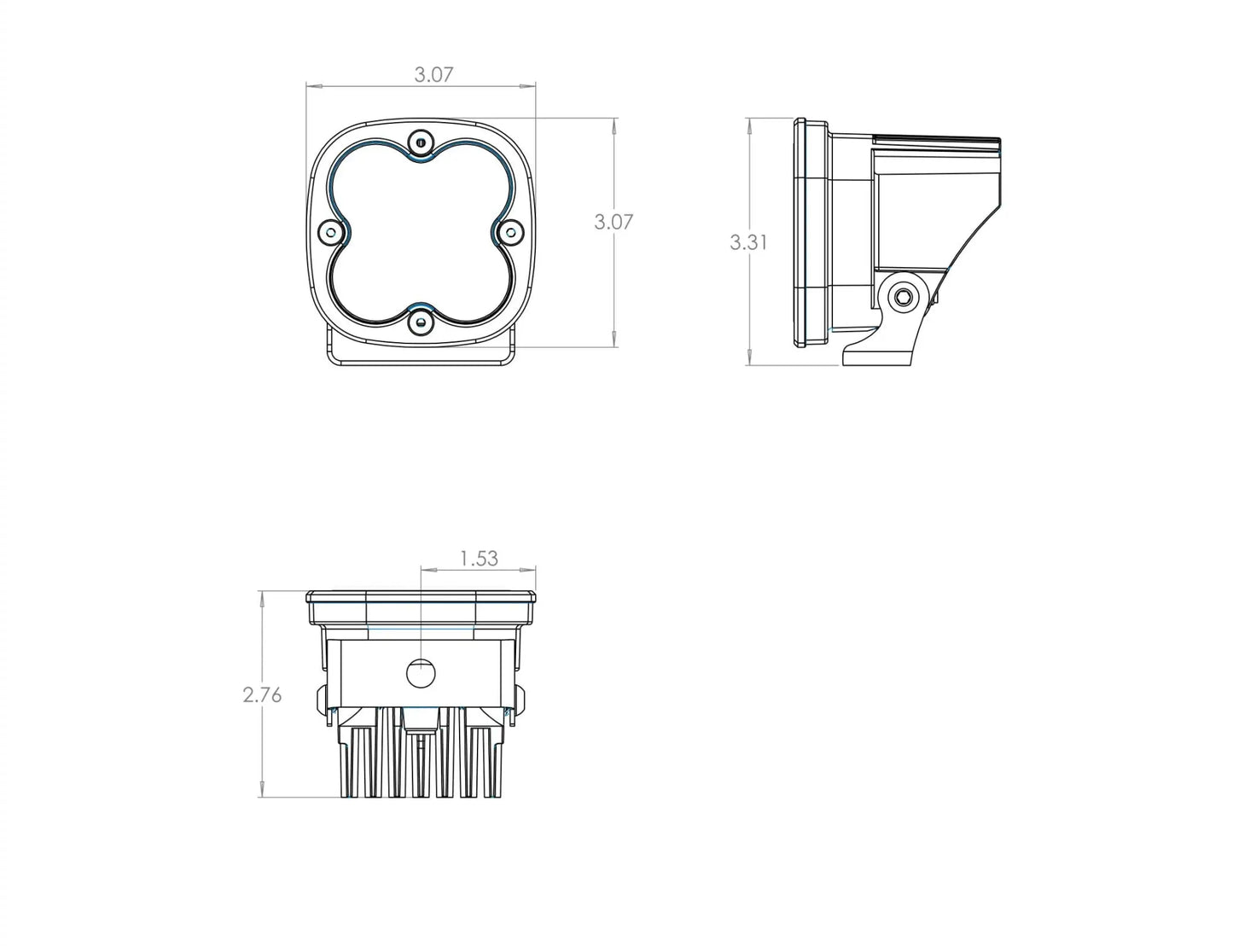

Dimensions
Depth in. | Height in. | Length in. | Weight lbs. |
2.77 |
3.5 | 3.5 | .75 |
Detailed Specs
Average Rated Life (hr.) |
49,930 |
Available Beam Patterns |
Spot, Driving/Combo, Wide Cornering, Work Scene |
Bezel Material |
Hard Anodized and Powder Coated Cast Aluminum |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Available Lens Colors |
Clear, Amber |
Lighting Modes |
Beam |
Lens Material |
Hard Coated Polycarbonate |
Lighting Type |
Cree LED(2 Types) |
Hardware Included |
Yes |
Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Wiring Harness Included |
Yes |
Durability |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Water Resistance |
IK10 Compliant (Mechanical Impact Testing) |
Impact Resistance |
IP69K (Waterproof up to 9ft & Pressure Washable) |
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Share
Lens Patterns:
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
