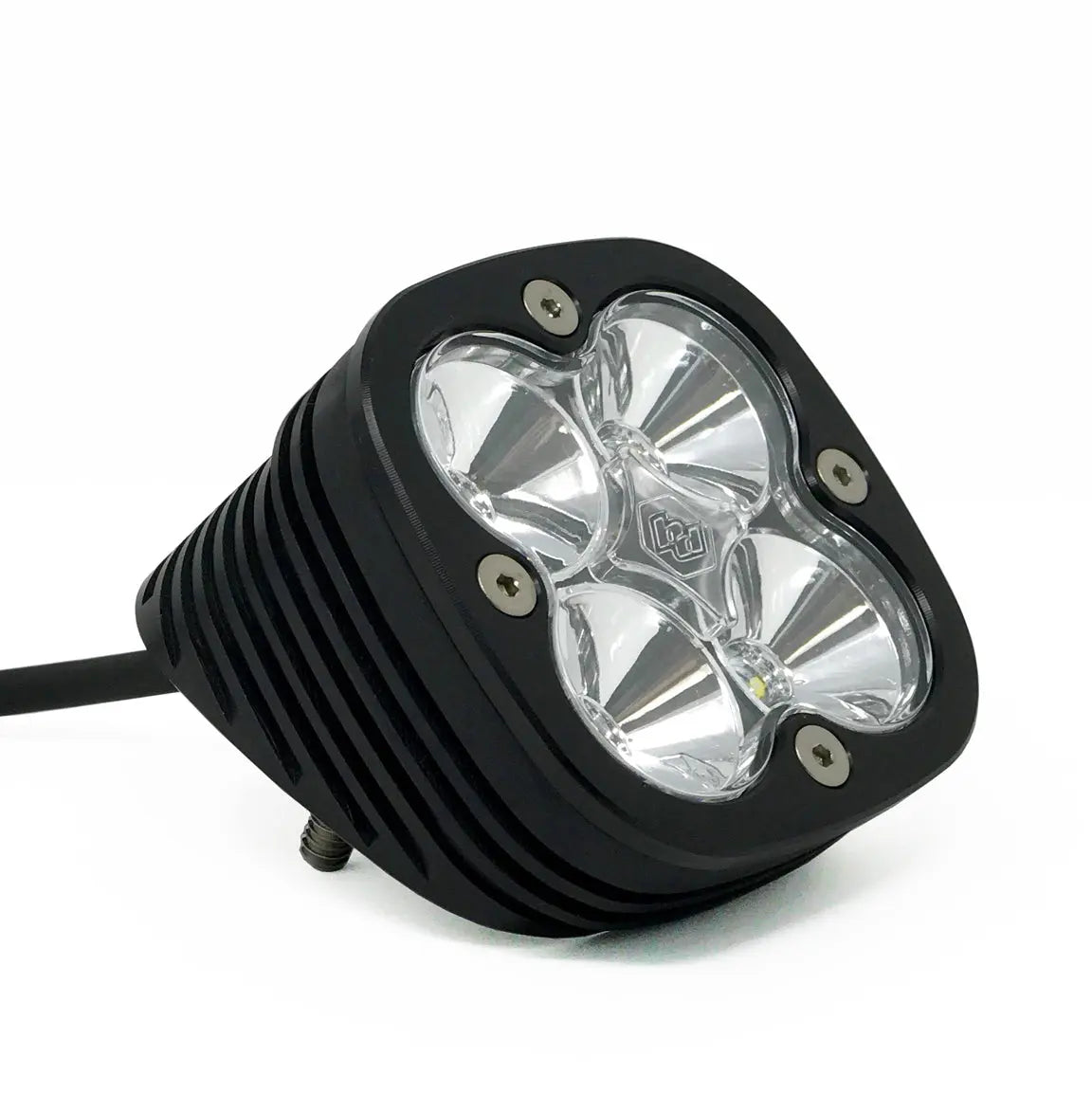

Squadron Pro Black Angle Mount LED Auxiliary Light Pod
Squadron Pro Black Angle Mount LED Auxiliary Light Pod
SKU:492006
With a sleek black gloss appearance and a 25-degree angle, our Squadron Pro LED angle mount light from Baja Designs will allow you to light up the night. Don’t let the compact size of these 3” light pods fool you. The black angle mount housing is perfect for the side of trailers or any application where you need an angled mount solution auxiliary lighting. The angled flush mount allows you to easily mount to a flat surface by only drilling three small holes. The light comes with all the necessary hardware to make installation very simple and straight forward. While compact in size the Squadron Pro outshines the competition through both appearance and performance using next-generation LEDs pushing out 4,095 lumens
Baja Designs 492006 Installation Sheet
Brightness
Lumens | Amperage Rating |
4,095 |
3.0A |
Dimensions
Depth in. | Height in. | Length in. | Weight lbs. |
2.77 |
3.5 | 3.5 | .75 |
Detailed Specs
Average Rated Life (hr.) |
49,930 |
Available Beam Patterns |
Work Scene |
Bezel Material |
Hard Anodized and Powder Coated Cast Aluminum |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Available Lens Colors |
Clear |
Lighting Modes |
Beam |
Lens Material |
Hard Coated Polycarbonate |
Lighting Type |
Cree LED(2 Types) |
Hardware Included |
Yes |
Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Wiring Harness Included |
No |
Durability |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Water Resistance |
IK10 Compliant (Mechanical Impact Testing) |
Impact Resistance |
IP69K (Waterproof up to 9ft & Pressure Washable) |
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Share
Lens Patterns:
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
