Baja Designs

S8 Series Backlight Add-on Wiring Harness

S8 Series Backlight Add-on Wiring Harness

640177

$24.95 USD
$24.95 USD
Sale Sold out
Shipping calculated at checkout.

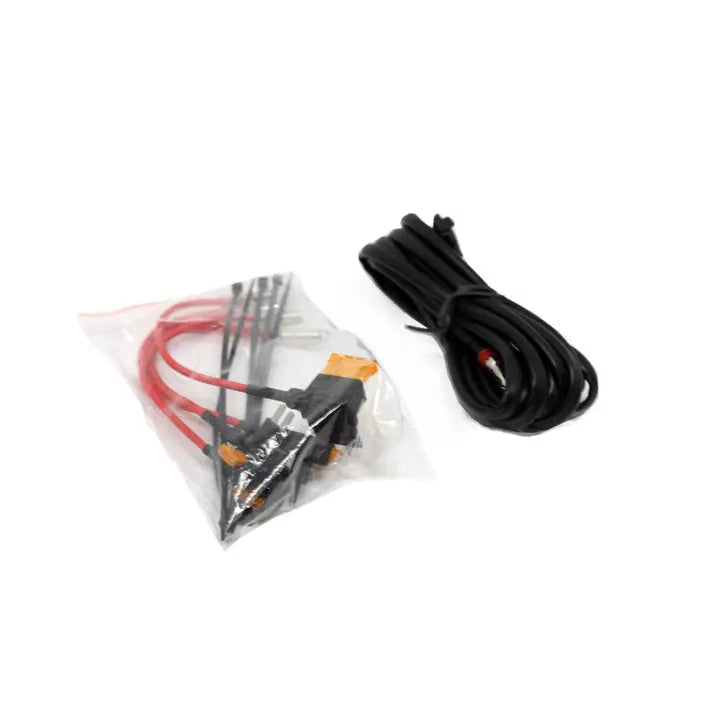

Do you love the look of backlit lighting and want to take full advantage of this functionality included with our S8 series lights? This harness was designed specifically for those without a backlight wiring solution looking to add it to their current harness. This harness features plenty of length to reach the fuse panel, or a splice to keyed power. Included are detailed instructions, four common fuse taps, an alternate splice connector, and zip ties. Save yourself some valuable time with this backlighting solution and get back out there!

Baja Designs 640177 Installation Sheet

    Detailed Specs

    Application S8 Series
    Description 4 Fuse Taps
    Mounting Hardware Included No
    Product Type S8 Backlit Add-On Kit
    Switch Included No
    Terminal Connector Bullet Connectors
    Universal or Specific Universal
    Wiring Harness Description Wiring Harness; Fuse Tap Kit
    Wiring Harness Included Yes

    VEHICLE LIGHTING ZONES
    The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
    Learn more about each zone's placement, power, and pattern.

    Learn more

    View full details

    Lens Patterns:

    • Wide Cornering

      The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.

    • Driving Combo

      Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

    • Spot

      A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

    • Work/Scene

      Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
