Baja Designs
S2 Sport Black Flush Mount LED Light Pod Reverse Kit
S2 Sport Black Flush Mount LED Light Pod Reverse Kit
SKU:547807
Couldn't load pickup availability
The S2 Sport features the same quality, fit, and finish that is synonymous with the Baja Designs name, at an attractive price point. The S2 Sport is ideal as a fog, cornering, rack, or reverse light and much more. A compact and powerful light, featuring quality that is second to none.

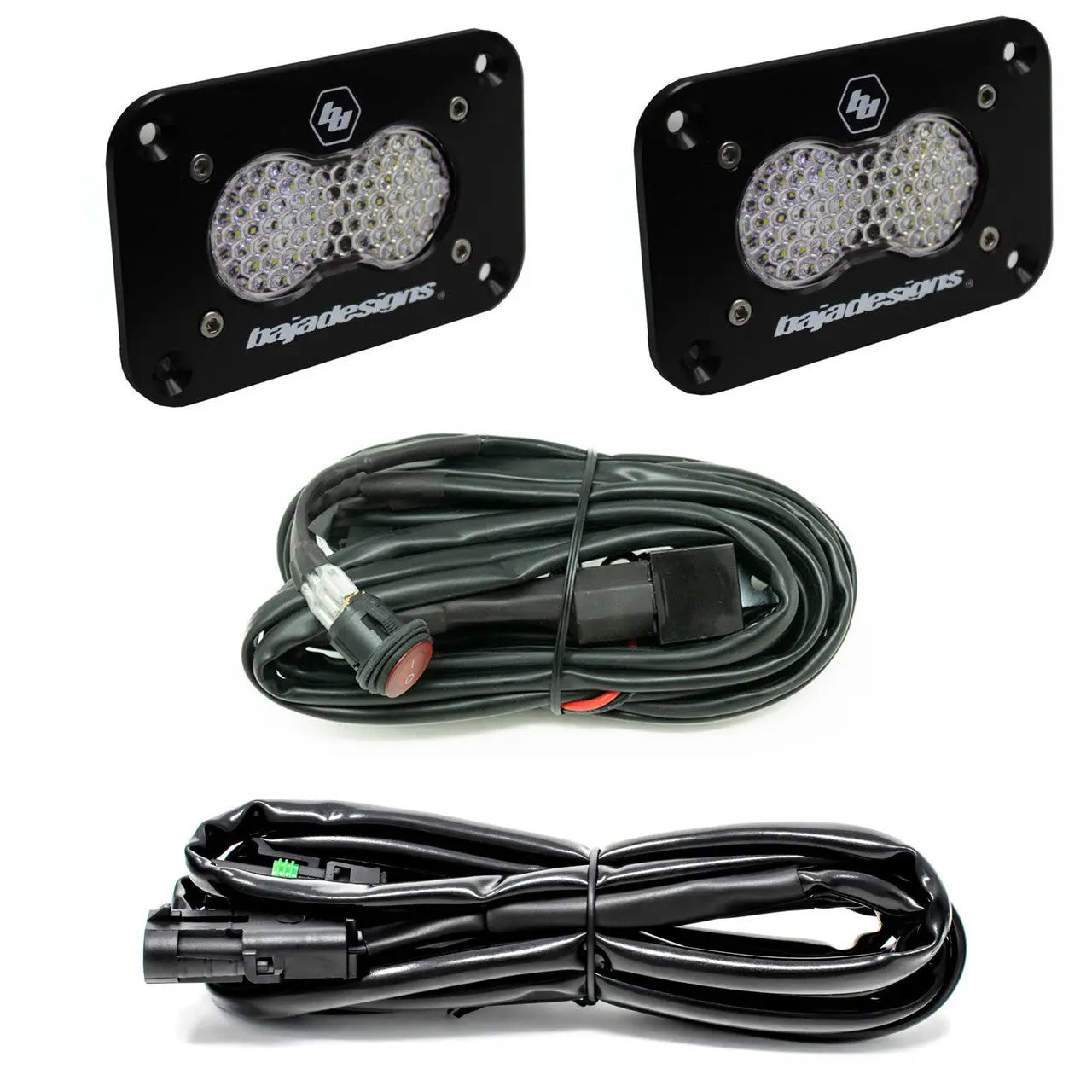

One Pair S2 Sport Pod Lights, 120" Reverse Light Wiring Harness Included
Baja Designs 487801 Installation Sheet
Brightness
Lumens-Each | Amperage Rating-Each |
1581 | 0.9A |
Dimensions
Depth in. | Height in. | Length in. | Weight lbs. |
1.68 | 1.76 | 2.93 | 0.5 |
Detailed Specs
Average Rated Life (hr.) |
49,930 |
Available Beam Patterns |
Wide Cornering, Work Scene |
Bezel Material |
Hard Anodized and Powder Coated Cast Aluminum |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Available Lens Colors |
Clear |
Lighting Modes |
Beam |
Lens Material |
Hard Coated Polycarbonate |
Lighting Type |
LED |
Hardware Included |
Yes |
Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Wiring Harness Included |
Yes, 120" Reverse Light Harness |
Durability |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Water Resistance |
IK10 Compliant (Mechanical Impact Testing) |
Impact Resistance |
IP69K (Waterproof up to 9ft & Pressure Washable) |
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Share
![S2 Sport Black Flush Mount LED Light Pod Reverse Kit](http://pivotalmotorsports.com/cdn/shop/products/54780764945_source_1664473197.jpg?v=1685997132&width=1445)
![S2 Sport Black Flush Mount LED Light Pod Reverse Kit](http://pivotalmotorsports.com/cdn/shop/products/547808-s2-reverse-kitWS__70806.jpg?v=1685997135&width=1445)
Lens Patterns:
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
