Baja Designs

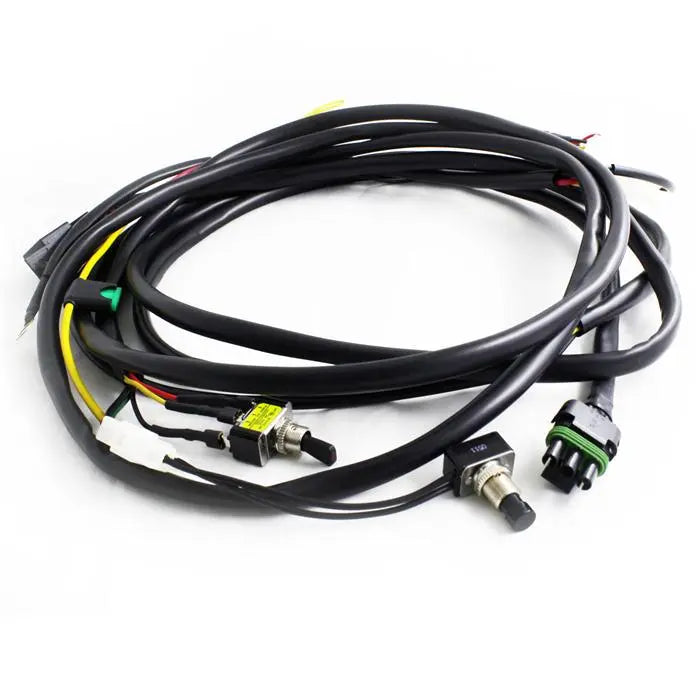

OnX6/XL Hi-Power w/Mode Switch 2-Light Max (355 Watts) Wiring Harness

OnX6/XL Hi-Power w/Mode Switch 2-Light Max (355 Watts) Wiring Harness

SKU:640119

Regular price $74.95 USD
Regular price Sale price $74.95 USD
Sale Sold out
Shipping calculated at checkout.

Complete harness for Baja Designs XL (Pro and Sport) and OnX6 plus LED Lights. This harness takes all the guess work out of installation and is incredibly high quality suited for race use! This harness allows you to use the high beam or toggle switch to turn on the LED light.

Includes Toggle switch for On/Off and toggle button for dim mode, and 613608 splitter.

Heavy duty wire gauge

Complete with battery ring terminals, relay, sheathing, fuse

100 inch wire length between battery ring terminals and weatherpack for bumper or roof mounting

Baja Designs 640119 Installation Sheet

    Detailed Specs

    Application OnX6/XL
    Description 2-Lights Max; Mode Switch; 355 Watts
    Mounting Hardware Included No
    Product Type OnX6/XL Hi-Power Wiring Harness w/ Mode Switch
    Switch Included Yes
    Switch Type On/Off Switch; Mode Switch
    Terminal Connector Three-Pin Connections
    Terminal Type Splice Connectors
    Universal or Specific Universal
    Wiring Harness Description Heavy-Duty Wire Gauge
    Wiring Harness Included Yes
    Wiring Harness Length (in.) 100

    VEHICLE LIGHTING ZONES
    The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
    Learn more about each zone's placement, power, and pattern.

    Learn more

    View full details
    • Wide Cornering

      The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.

    • Driving Combo

      Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

    • Spot

      A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

    • Work/Scene

      Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
