Baja Designs

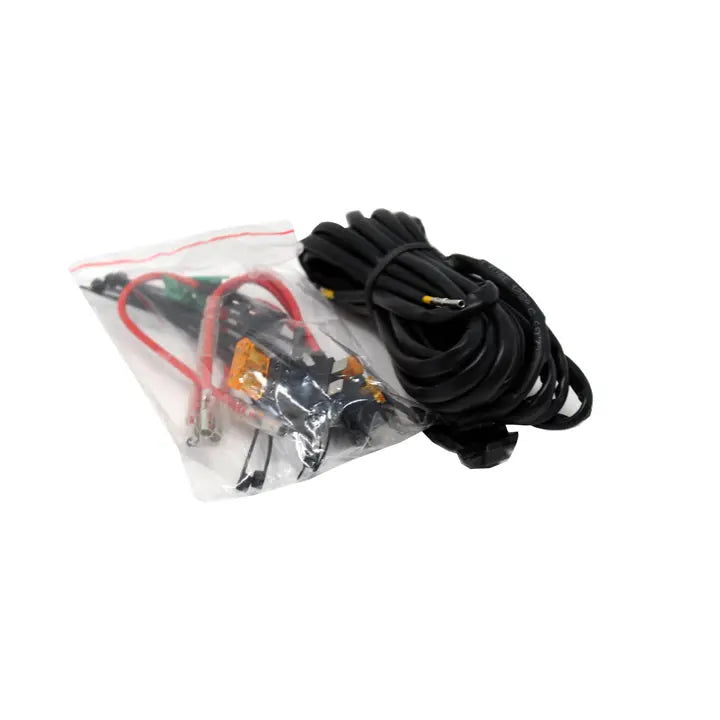

LP Series Backlit Add-on Wiring Harness

LP Series Backlit Add-on Wiring Harness

640176

$21.95 USD
$21.95 USD
Sale Sold out
Shipping calculated at checkout.

Do you love the look of backlit lighting and want to take full advantage of this functionality included with our LP lights? This harness was designed specifically for those without a backlight wiring solution looking to add it to their current harness. This harness features plenty of length to reach the fuse panel, or a splice to keyed power. Included are detailed instructions, four common fuse taps, an alternate splice connector, and zip ties. Save yourself some valuable time with this backlighting solution and get back out there!

Please Note: This will not work with LP Series Sport Models.

Baja Designs 640176 Installation Sheet

Detailed Specs

Application LP Series Exc. Sport Models
Description 4 Fuse Taps
Mounting Hardware Included No
Product Type LP Series Backlit Add-on Wiring Harness
Switch Included No
Terminal Connector Bullet Connectors
Universal or Specific Universal
Wiring Harness Description Wiring Harness; Fuse Tap Kit
Wiring Harness Included Yes

VEHICLE LIGHTING ZONES
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
Learn more about each zone's placement, power, and pattern.

Learn more

View full details

Lens Patterns:

  • Wide Cornering

    The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.

  • Driving Combo

    Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

  • Spot

    A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

  • Work/Scene

    Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
