CTEK Lithium US 12v
CTEK Lithium US 12v
SKU:CTE56-926
Couldn't load pickup availability
FEATURES
- Complete LiFePO4 Battery Care - unique and patented system to recover, charge, and maintain LiFePO4 batteries to maximize performance and extend life.
- Safe to use - User safety through spark-free operation and reverse polarity protection. Vehicle electrical safety through exceptionally clean voltage and current delivery with no surges or spikes. No need to disconnect the battery from the vehicle when charging.

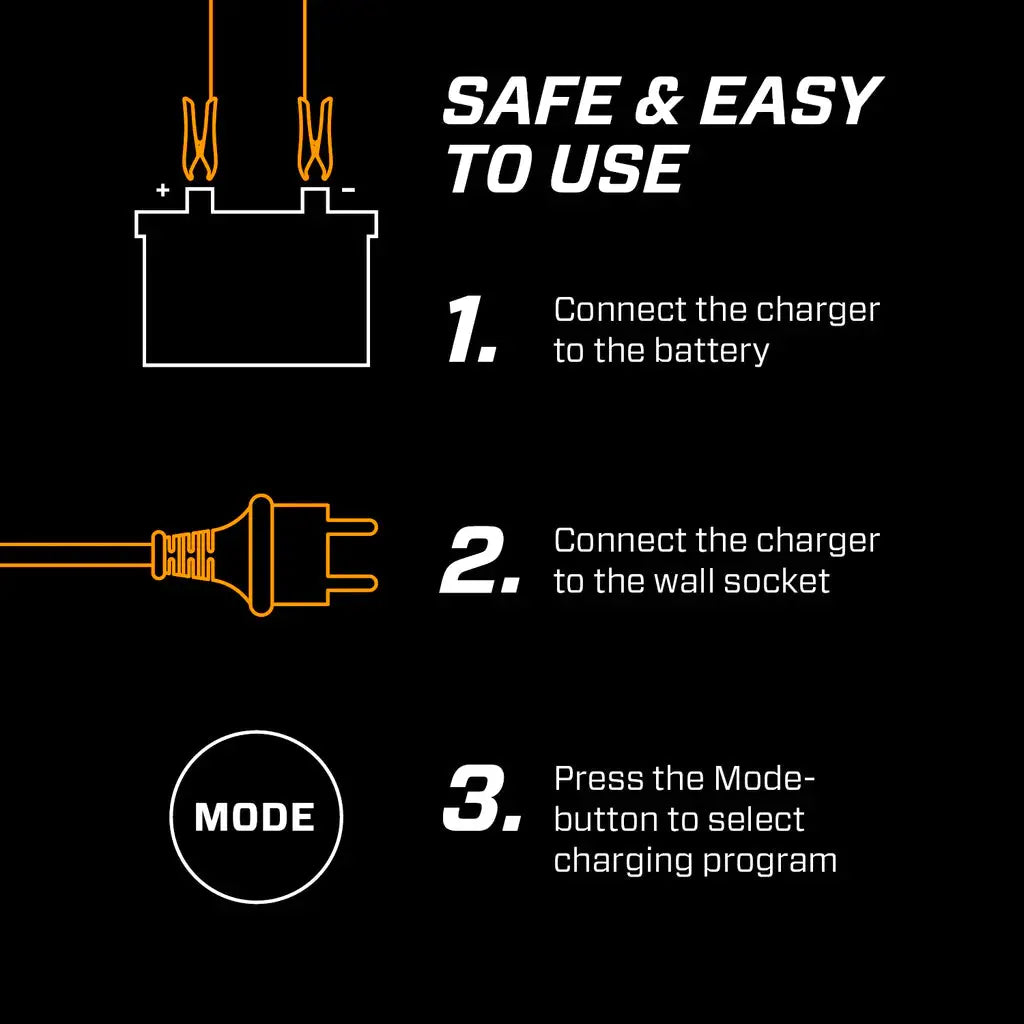

- Connect and forget - simple plug and play operation. Manual reset available
- Unique 8 step charging - the patented 8 step program tests battery condition and charges and maintains to ensure maximum LiFePO4 battery life and performance. Float / Pulse maintenance ensures ideal battery care during periods of inactivity.
- Extends battery life - the unique features of CTEK chargers combine to maximize performance and extend LiFePO4 battery life.
The LITHIUM US (Part No. 56-926) is an advanced microprocessor controlled charger specially designed to recharge and maintain the cells of Lithium-Iron (LiFePO4) batteries - maximizing their performance and lifespan. With up to 4.3A of charge current available the LITHIUM US is extremely flexible and will charge LiFePO4 batteries from 5Ah to 60Ah and maintain up to 120Ah.
The operation is simple and charging will commence upon connection. With no need to disconnect the battery from the vehicle, at charge start the LITHIUM US will automatically reset any low voltage protection electronics (Battery Management System) fitted. Charging can be restarted manually at any time using the 'Reset' button.
The CTEK LITHIUM US is a fully automatic 'connect and forget' charger with 8 charging steps including a testing sequence to show if the LiFePO4 battery can take and retain the charge, a unique maximization step to restore full capacity, and patented maintenance charging to ensure maximum performance even after months of inactivity. Splash-proof and dustproof (IP65) the LITHIUM US is easy and safe to use, protects vehicle electronics, is spark-free, is reverse polarity protected and short circuit proof. The LITHIUM US features a 5-year warranty.
See a visual demo of the 8-step smarter charging process
TECHNICAL SPECIFICATIONS
|
Part No. |
56-926 |
|
Input voltage AC |
100-120VAC, 50-60Hz |
|
Charge voltage |
13.8 / 14.4V |
| Minimum battery voltage required: | 5.0V |
|
Charge current |
Max 4.3A |
|
Type of charger |
8 step, fully automatic charging cycle |
|
Type of battery |
12V Lithium-Ion Phosphate (LiFePO4) |
|
Battery Capacity |
5.0Ah - 60Ah, maintenance charging up to 120Ah |
|
Degree of Protection |
IP65 (splash and dust proof) |
|
Warranty |
5-year warranty |
Share
Collapsible content
CTEK FAQs & Troubleshooting
CT5 TIME TO GO
Download FAQ & Troubleshooting guide
CT5 POWERSPORT
Download FAQ & Troubleshooting guide
PRO25
Download FAQ & Troubleshooting guide
BATTERY SENSE
Download FAQ & Troubleshooting guide
ACCESSORIES
Download FAQ & Troubleshooting guide
What is AGM?
AGM stands for Absorbed Glass Mat and differs from a standard Flooded battery in that the electrolyte is held on a fibre glass mat and pressed against the active plate area, instead of being allowed to flood around the plates. This type of battery has a low internal resistance and can accept charge very quickly making it ideal for the modern start stop systems. If the battery casing should become damaged the electrolyte will not leak out.
What is EFB or ECM?
EFB stands for Enhanced Flooded Battery, ECM stands for enhanced cyclic mat, two different names for the same type of battery and both are similar in set up to a standard Flooded battery. There are some design changes with this technology, active plate material is more dense, anti-corrosion treatment for negative and positive grid and lower specific gravity to improve charge acceptance are just some of the differences. The EFB battery provides a more cost-effective battery solution over more expensive AGM type batteries.
What is CA/CA?
Calcium/Calcium batteries are a flooded low maintenance or maintenance free battery usually VRLA type. During construction some of the Antimony used in the construction is replaced by Calcium (2% approx.). The benefits are a more robust grid, low water loss and longer shelf life.
What is WET/ FLOODED?
The Flooded battery consists of a series of negative plates (sponge lead) and positive plates (Lead Dioxide) separator material and an Electrolyte solution which is approx. 65% water 35% Sulphuric acid. The flooded type of battery can be vented (which can be topped up) or VRLA which is sealed.
What is MF/VRLA?
MF or Maintenance free also known as a VRLA or Valve Regulated Battery type battery is a flooded battery with the addition of Calcium / Silver to the grid material to reduce gassing and water loss. The battery becomes a small pressure vessel by the addition of a pressure valve (instead of the vents in a standard battery) designed to retain gasses created during charging process - Hydrogen and Oxygen within the battery long enough to recombine into water, which replenishes the electrolyte level. Because of this process these batteries are also called recombination batteries.
What is GEL?
The Gel battery differs from any other lead acid battery because the electrolyte is no longer a fluid, Silica is added to create an electrolyte Gel which is applied to the active surface area of the plate. If the battery casing should become damaged the electrolyte will not leak out.
What is SPIRAL CELL?
A very distinctive looking battery, and very similar internally to the AGM battery. But instead of the plates being flat they are wound together very tightly into a cylindrical shape, which gives the battery its name Spiral cell. If the battery casing should become damaged the electrolyte will not leak out.
What is LiFePo4?
The lithium iron phosphate (LiFePO4) battery is a totally different technology from all the lead acid types mentioned previously. Due to its low weight and high-power output, it has become very popular in weight critical environments such as Powersports etc. The replacement cost of the unit at present makes its application restricted
What does SoC mean?
SoC means State of Charge and gives the state of charge as a percentage. A battery that has 11.65V (or less) is flat and has SoC 0. A battery with 12.76V (or more) is fully charged and has SoC 100.
Can you charge a lead acid battery with the Lithium mode?
No - CTEK recommend the correct charge mode be used at all times.
