CTEK

CTEK CT5 Powersport 2.3A Wet / AGM / Lithium 12v

Name: CTEK CT5 Powersport 2.3A Wet / AGM / Lithium 12v
Brand: CTEK
SKU: CTE40-339
Price: 85.28 USD
Availability: OutOfStock

SKU:CTE40-339

Product variants

$85.28 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

FEATURES

40-339

CTEK CT5 POWERSPORT 12V 2.3A Battery Charger & Maintainer

Charges Lead-Acid and Lithium (12V LiFePO4) Batteries
Minimum battery voltage required: 2.0V LEAD-ACID / 5.0V LITHIUM
Tests and Restores Battery Capacity
Non-Sparking, Reverse Polarity Protected
Battery Capacity: 5-25ah
5 Year Warranty
Built-in temperature sensing capabilities

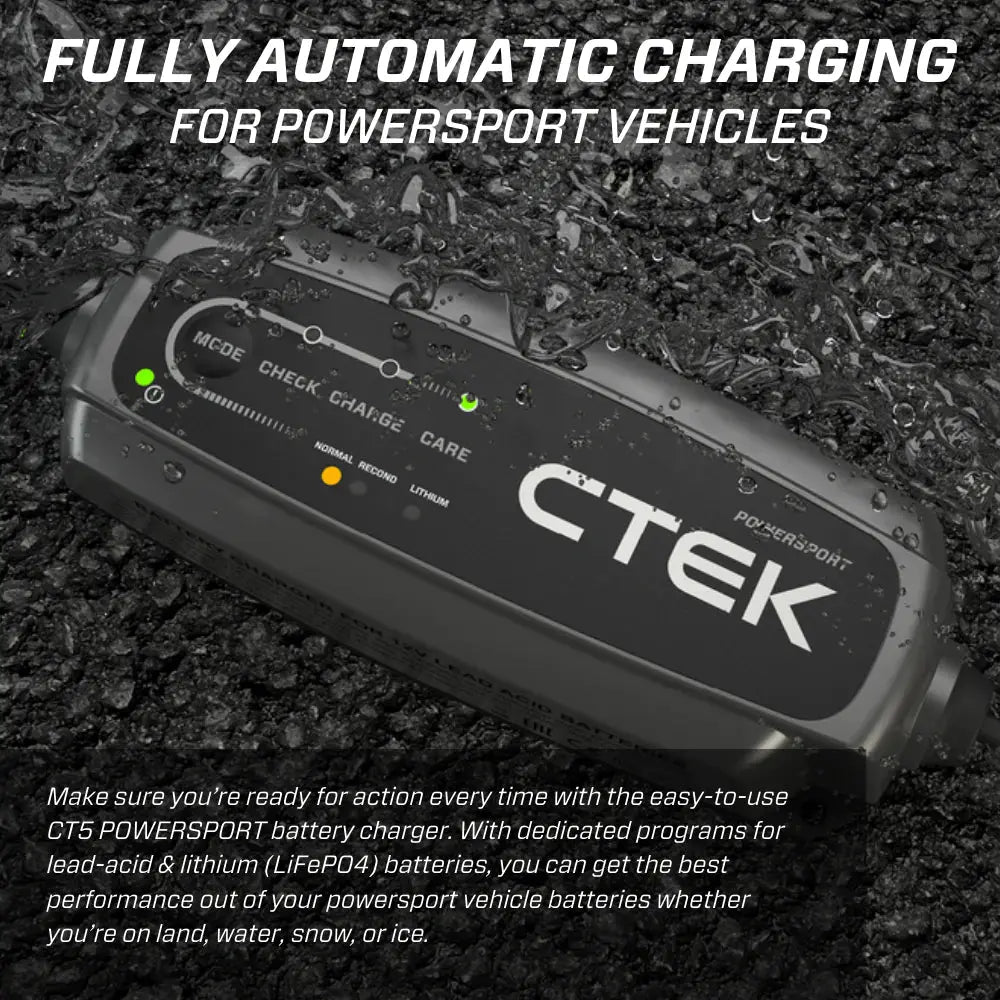

The CT5 POWERSPORT (part# 40-339) makes sure you're ready for action every time. With dedicated programs for lead-acid and lithium (12V LiFePO4) batteries, you can get the best performance out of your powersport vehicle batteries whether you're on land, water, snow, or ice. Alligator clamps and eyelets included

To give you the best performance possible, your powersport vehicle needs to be in top condition. Powersport vehicles are often stored for long periods of time. The CT5 POWERSPORT battery charger provides peace of mind that your battery is charged to capacity and ready to go when you are.

The CT5 POWERSPORT has been designed specifically to charge and maintain powersport batteries using advanced technology to give you three fully automatic charging and maintenance programs – Normal: for all lead-acid batteries, including AGM, Lithium*: for all lithium* batteries and Recond. If required, you can connect The CT5 Powersport directly to the battery indefinitely, it will not over or undercharge.

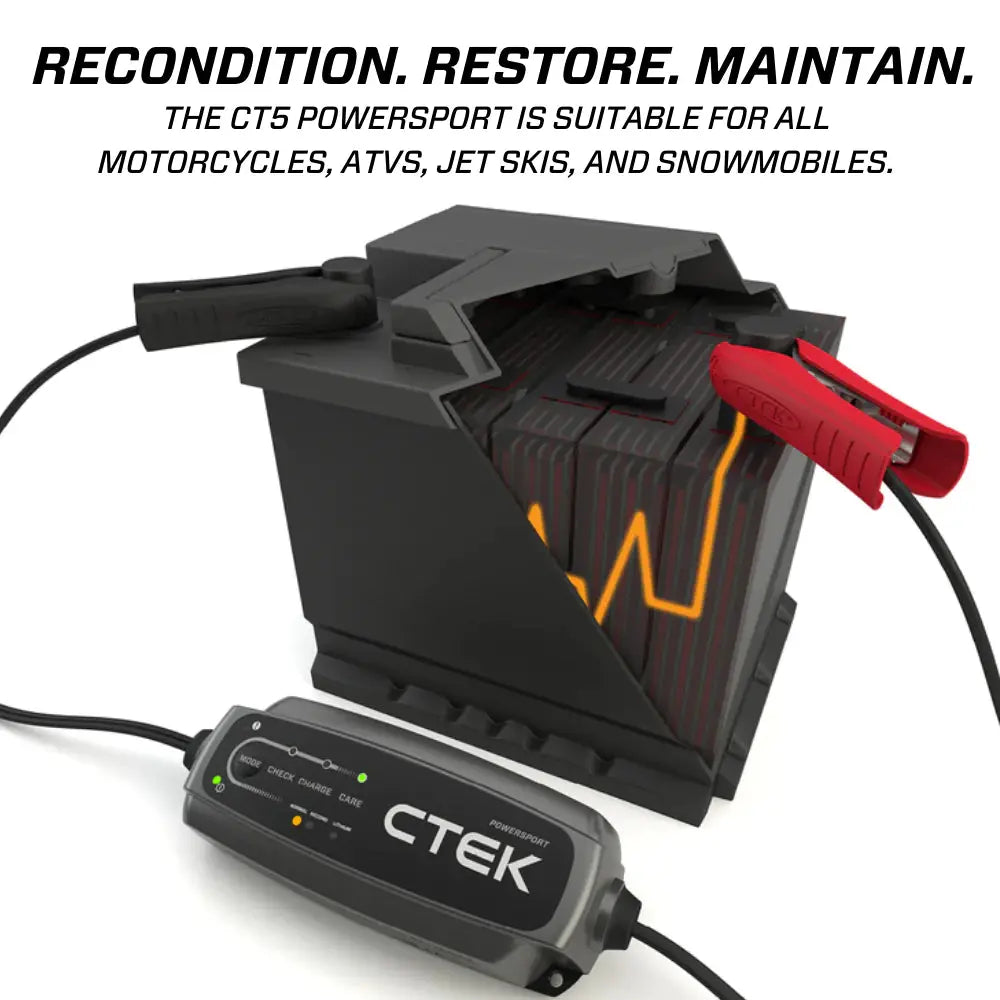

The CT5 POWERSPORT is suitable for all motorcycles, ATVs, Jet Skis, and snowmobiles. The CT5 POWERSPORT offers features such as a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging, and the charging of demanding AGM batteries (i.e. Optima). The charger is splash and dustproof, designed to protect vehicle electronics and non-sparking, reverse polarity protected, and short-circuit proof. It is delivered with a 5-year warranty. It provides an outstanding charging experience!

CT5 Powersport Product Brochure

See a visual demo of the 8-step smarter charging process

TECHNICAL SPECIFICATIONS

Input	110-120VAC, 50-60HZ, 1.1A max
Output	14.4/15.8/14.2V, 2.3A max
Back Current Drain*	Corresponding to less than 1.5Ah/month
Ambient Temperature	-4°F to +122°F (-20 ̊C to +50 ̊C)
Battery Types	12V: WET, Ca/Ca, MF, AGM, GEL, LiFePO4
Battery Capacity	5-25Ah
Degree of Protection	IP65
Warranty	5 years

* Back current drain is the current that drains the battery if the charger is not connected to a power outlet. CTEK chargers have a very low back current.

View full details

CTEK FAQs & Troubleshooting

What is AGM?

AGM stands for Absorbed Glass Mat and differs from a standard Flooded battery in that the electrolyte is held on a fibre glass mat and pressed against the active plate area, instead of being allowed to flood around the plates. This type of battery has a low internal resistance and can accept charge very quickly making it ideal for the modern start stop systems. If the battery casing should become damaged the electrolyte will not leak out.

What is EFB or ECM?

EFB stands for Enhanced Flooded Battery, ECM stands for enhanced cyclic mat, two different names for the same type of battery and both are similar in set up to a standard Flooded battery. There are some design changes with this technology, active plate material is more dense, anti-corrosion treatment for negative and positive grid and lower specific gravity to improve charge acceptance are just some of the differences. The EFB battery provides a more cost-effective battery solution over more expensive AGM type batteries.

What is CA/CA?

Calcium/Calcium batteries are a flooded low maintenance or maintenance free battery usually VRLA type. During construction some of the Antimony used in the construction is replaced by Calcium (2% approx.). The benefits are a more robust grid, low water loss and longer shelf life.

What is WET/ FLOODED?

The Flooded battery consists of a series of negative plates (sponge lead) and positive plates (Lead Dioxide) separator material and an Electrolyte solution which is approx. 65% water 35% Sulphuric acid. The flooded type of battery can be vented (which can be topped up) or VRLA which is sealed.

What is MF/VRLA?

MF or Maintenance free also known as a VRLA or Valve Regulated Battery type battery is a flooded battery with the addition of Calcium / Silver to the grid material to reduce gassing and water loss. The battery becomes a small pressure vessel by the addition of a pressure valve (instead of the vents in a standard battery) designed to retain gasses created during charging process - Hydrogen and Oxygen within the battery long enough to recombine into water, which replenishes the electrolyte level. Because of this process these batteries are also called recombination batteries.

What is GEL?

The Gel battery differs from any other lead acid battery because the electrolyte is no longer a fluid, Silica is added to create an electrolyte Gel which is applied to the active surface area of the plate. If the battery casing should become damaged the electrolyte will not leak out.

What is SPIRAL CELL?

A very distinctive looking battery, and very similar internally to the AGM battery. But instead of the plates being flat they are wound together very tightly into a cylindrical shape, which gives the battery its name Spiral cell. If the battery casing should become damaged the electrolyte will not leak out.

What is LiFePo4?

The lithium iron phosphate (LiFePO4) battery is a totally different technology from all the lead acid types mentioned previously. Due to its low weight and high-power output, it has become very popular in weight critical environments such as Powersports etc. The replacement cost of the unit at present makes its application restricted

What does SoC mean?

SoC means State of Charge and gives the state of charge as a percentage. A battery that has 11.65V (or less) is flat and has SoC 0. A battery with 12.76V (or more) is fully charged and has SoC 100.

Can you charge a lead acid battery with the Lithium mode?

No - CTEK recommend the correct charge mode be used at all times.
