Can-Am S8 10 Inch Shock Mount Light Bar Kit - Can-Am 2017-22 Maverick X3
Can-Am S8 10 Inch Shock Mount Light Bar Kit - Can-Am 2017-22 Maverick X3
SKU:447037

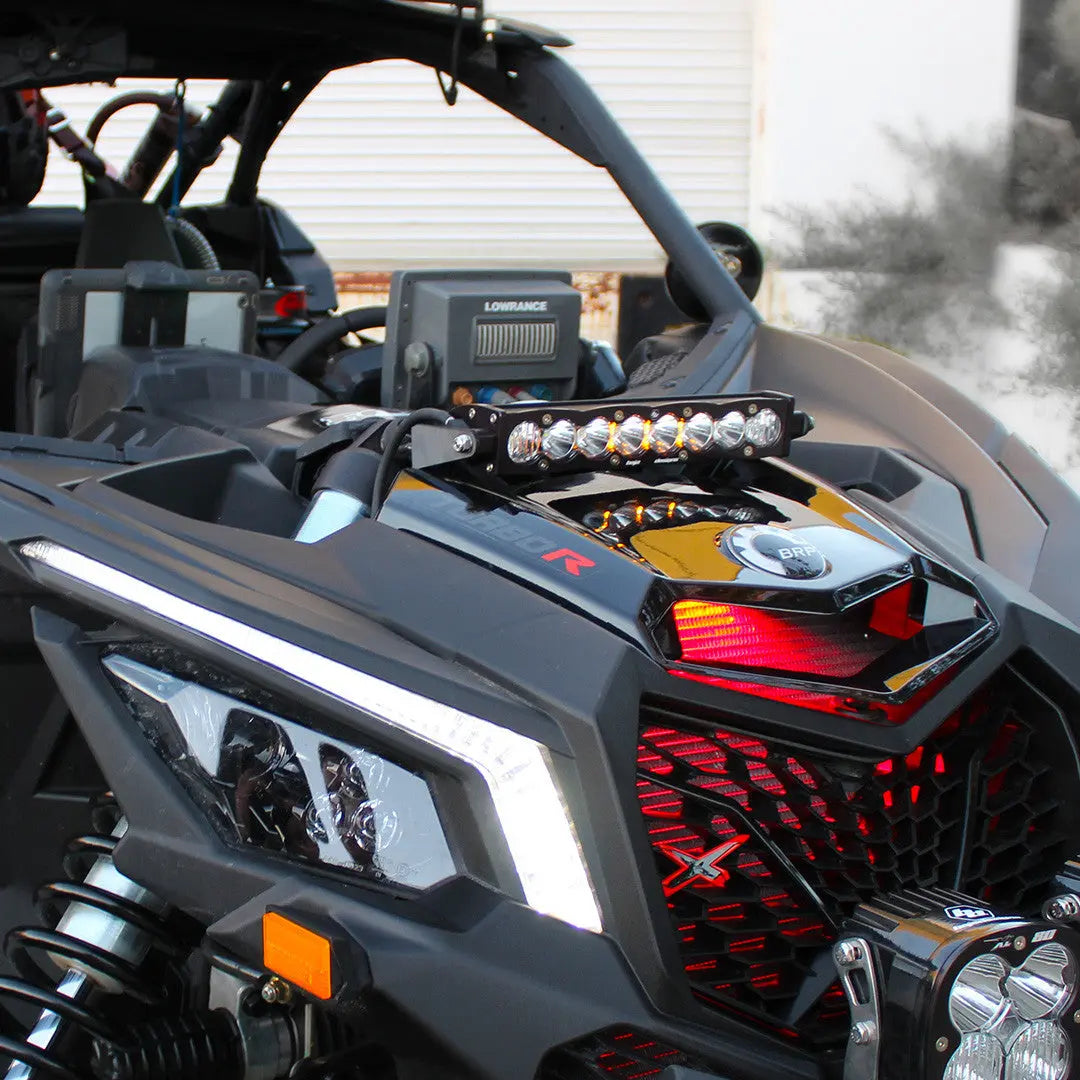

Separate yourself from the pack with the Baja Designs Can-Am S8 Shock Mount. This kit includes a 10 inch S8 light bar and mount that easily bolts up to the factory shock tower and keeps the light stable at high speeds. This kit is ideal for someone looking to gain forward projecting light while maintaining the X3's aggressive styling.
Fits Can-Am Maverick X3 and X3 Max: 2018-Current
Baja Designs 447037 Installation Sheet
Brightness
Length | Lumens | Amperage Rating |
10" | 6,325 | 4.2 |
Dimensions
Length in. | Depth in. | Height in. | Weight lbs. |
10" | 3 |
1.6 |
2.4 |
Detailed Specs
Average Rated Life (hr.) |
49,930 |
Available Beam Patterns |
Driving/Combo |
Bezel Material |
Billet Machined Aluminum |
Housing Color |
Black |
Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
Available Lens Colors |
Clear, Amber |
Lighting Modes |
Beam/Amber Backlit |
Lens Material |
Hard Coated Polycarbonate |
Lighting Type |
CREE LED |
Mounting Hardware |
Mounting Brackets; Can-Am S8 Shock Mount |
Hardware Included |
Yes |
Hardware Material |
Stainless Steel |
Overvoltage Protection |
Built-In |
Wiring Harness Included |
Yes |
Durability |
Exceeds MIL-STD810G (Mil-Spec Testing) |
Water Resistance |
IK10 Compliant (Mechanical Impact Testing) |
Impact Resistance |
IP69K (Waterproof up to 9ft & Pressure Washable) |
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Baja Designs California Proposition 65
Share
Lens Patterns:
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
